Containerised High Flow Systems

Overview

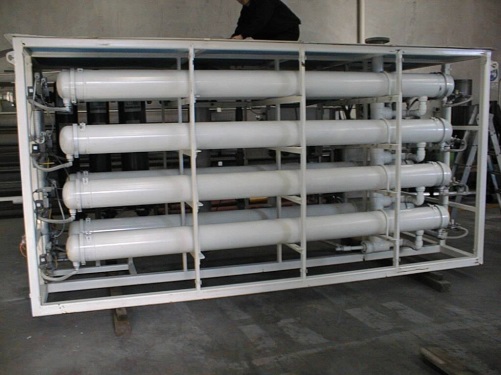

Oxair Gases’ High-Capacity Membrane Nitrogen System meets the needs of large-volume customers.The systems use a proprietary high-capacity membrane fibre developed to minimise your electrical power consumption.

Engineered for fast installation, low maintenance, and simple operation, these systems are an ideal supply alternative for a wide range of applications, with significant operational savings over liquid nitrogen tanks.

Models are available to supply your high-volume requirements up to 5,000 M3/hr (170,000 SCFH with a range of purities up to 99.9%).

Features

Containerised systems are a way of producing a ready made structure to hold the membranes that is:

• Operating Pressures 7 to 24 Bar ( 100 – 350 PSIG)
• Lift Rated
• Air conditioned Control Room
• Easily transported
• Gives easy access for maintenance.
• Lower cost than engineering, designing and building a structure to hold the membranes and compressor skid.
• Simple Installation
• Weather proof
